Compact Monoblock Class D Car Amplifier N387036
Compact Monoblock Class D Car Amplifier N387036
Ultra Compact MOSFET Monoblock Class D Car Amplifier
RMS power @ 1 Ohm: 500 Watts x 1 Channel (14.4v)
Frequency Response: 15Hz - 270Hz
Hi-Level Input Connection: Yes | Signal-to-Noise Ratio (Sensitivity): 85dB

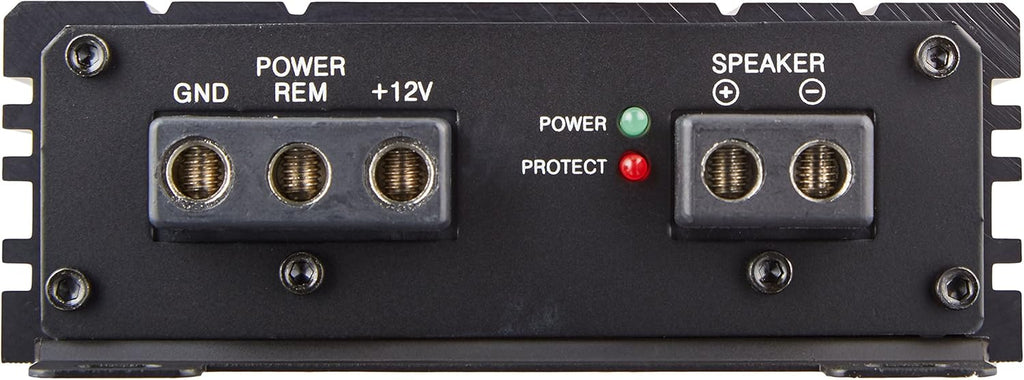

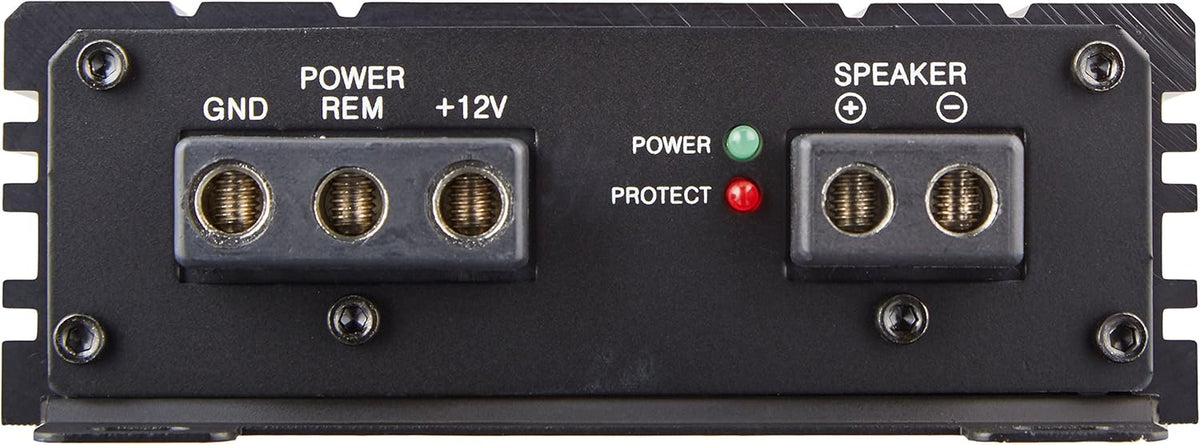

8 Gauge Power and Ground Input Terminals

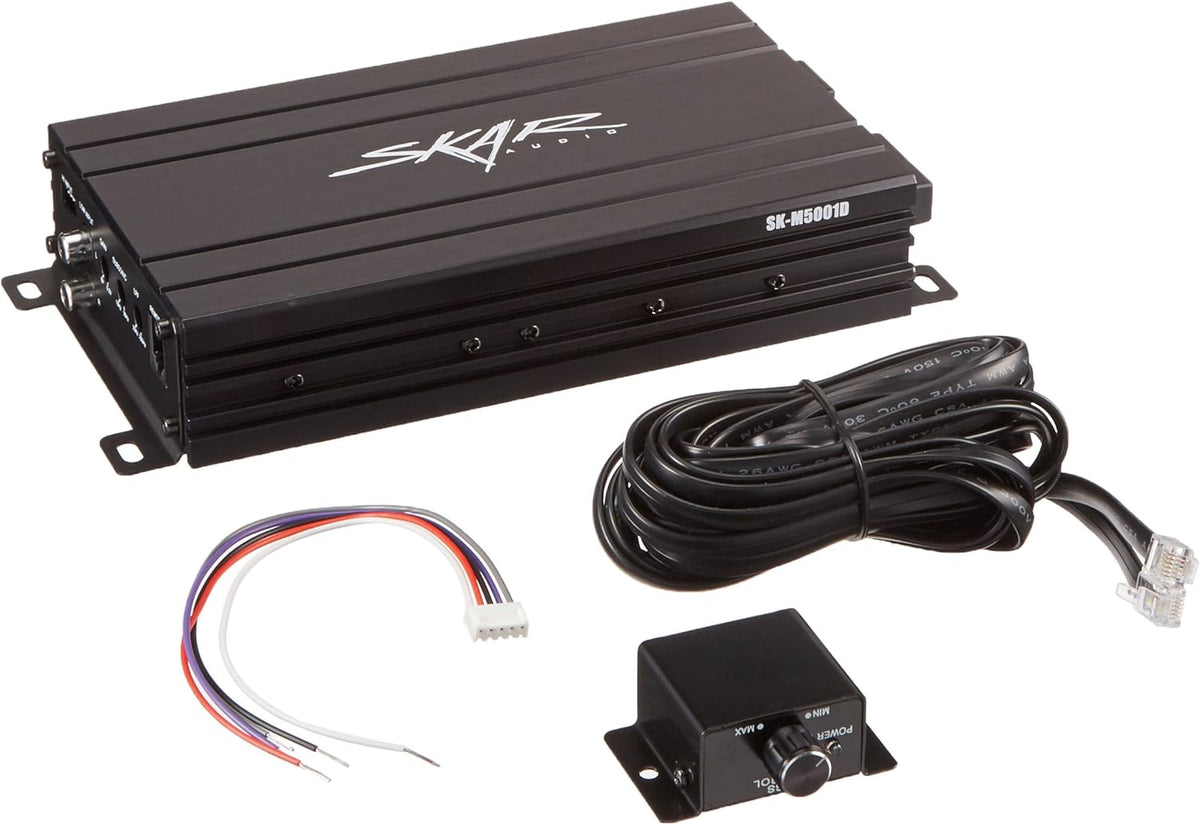

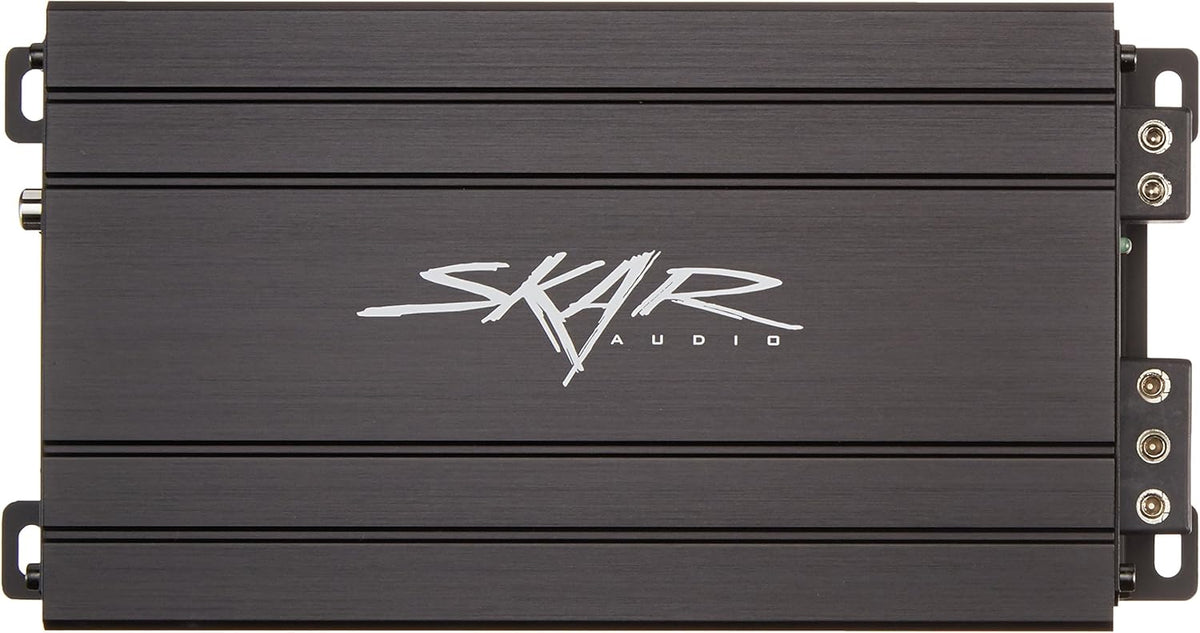

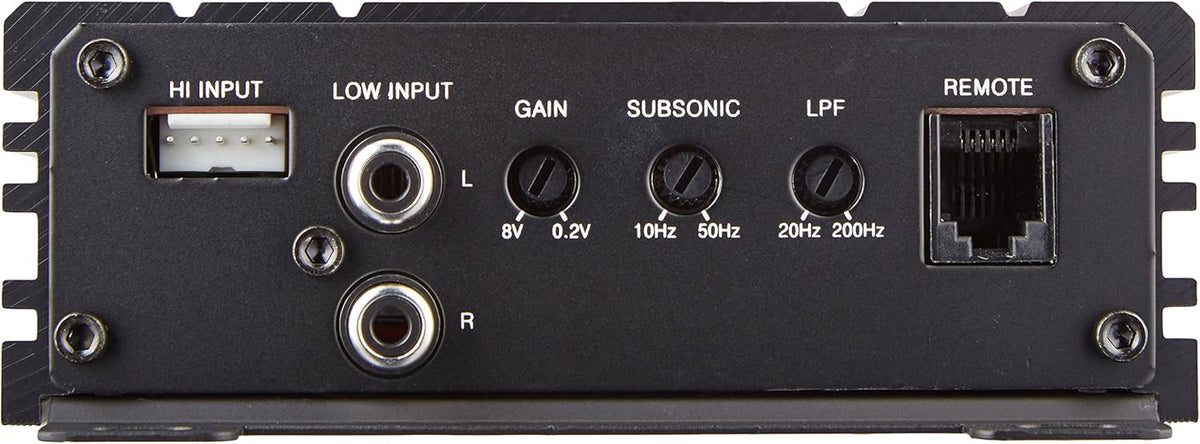

The Skar Audio SK-M5001D is an ultra compact, 'mini', Class D monoblock car subwoofer amplifier. The SK-M5001D was engineered to be compact, but provide the power and reliability expected out of larger amplifiers. Featuring a high speed MOSFET power supply, and an efficient Class D design, this amplifier is powerful, reliable, and extremely versatile. The SK-M5001D makes for a great amplifier in applications where space is limited but power cannot be sacrificed. In addition, this monoblock subwoofer amplifier features high level input connections for those installations that lack an RCA connection. Further adding to the feature rich list of this amplifier are its gain, subsonic, and low-pass user control filters. Utilizes 8 Gauge Power and Ground Input Terminals. Amplifier dimensions: 7.9in x 4.6in x 1.7in (L x W x H)
| SK-M4004D | SK-M5001D | SK-M9005D | |
|---|---|---|---|
| Channels | 4 | 1 | 5 |
| Max Power @ 1 Ohm | N/A | 650 Watts x 1 | N/A |
| RMS Power @ 1 Ohm | N/A | 500 Watts x 1 | N/A |
| RMS Power @ 2 Ohms | 134 Watts x 4 | 380 Watts x 1 | 85 Watts x 4 + 450 Watts x 1 |
| RMS Power @ 4 Ohms | 80 Watts x 4 | 238 Watts x 1 | 55 Watts x 4 + 300 Watts x 1 |
| Sensitivity | 85 dB | 85 dB | 85 dB |
| Strappable @ 2 Ohms | No | No | No |
| Fuse Rating | 40 Amps | 50 Amps | 80 Amps |
| Remote Bass Knob | - | ||
| Working Voltage | 8.5v - 16v | 8.5v - 16v | 8.5v - 16v |
